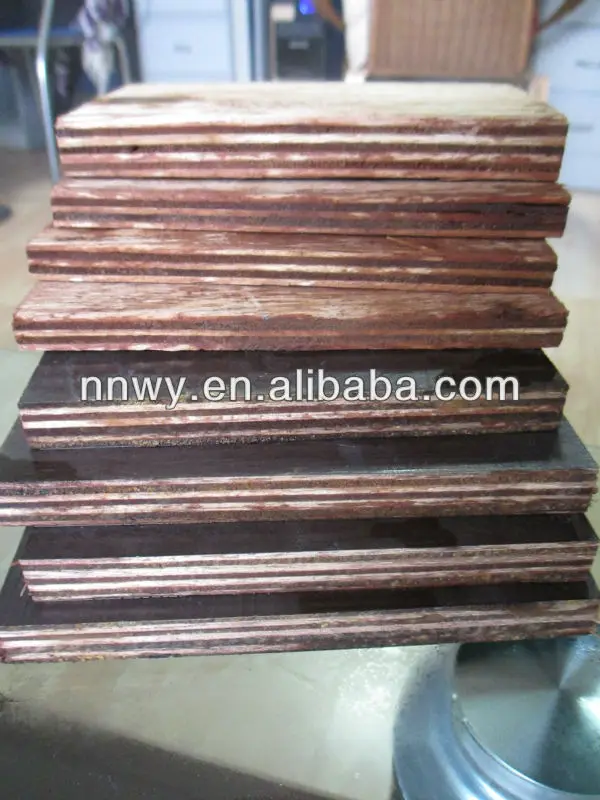

Hardwood brown film faced plywood for construction

FOB Reference Price:Get Latest Price
US $15-20 / Pieces | 1080 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangxi, China (Mainland)
Brand Name:
Waying
Model Number:
Film faced plywood
Usage:
Outdoor
Grade:
First-Class
Main Material:
Hardwood/birch /poplar/combi core
Formaldehyde Emission Standards:
E2
Plywood Type:
9-Ply Boards
Products name:
Hardwood brown film materiales de construccion
size::
1220x2440mm, 1250x2500mm
F&B Film::
Black/Brown/red/yellow
Core::
Poplar, birch, combi, hardwood,etc.
Thickness::
9/12/15/18/21mm
Glue:
WBP,MR, Melamine/ Dynea glue
Moisture::
6%-12%
Application::
forming concrete, construction using
Reuse time::
8-10times
MOQ::
1 X 40HQ
Type:
Plywoods
Supply Ability
Supply Ability:
9000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD EXPORT PACKAGE.
Port
Qingdao/ Lianyungang/Fangcheng/Guigang
Lead Time :
within three weeks
Video Description



Hardwood brown film materiales de construccion

1. Detail descreption of dynea glue film faced plywood:



Mainly specification

1220*2440mm ,1250*2500mm ,915*1830mm

Thinckness2.5-30mm
Thickness tolerance+/-0.05mm
Corespoplar,full birch,hardwood,pine,eucalyptus,combi ,ect.
Faced and back black film ,dynea or stora-enso dark brown film ,bich f/b,okoume f/b
Glue WBP,MELAMINE,MR,E0,E1,E2
Moisture6%-12%
PackagingPallets are coverd with plywood or carton box and then steel tape for strenthening
Applicationforming concrete, construction using
Features

1.No wapping, no fracture,not out of shape , it can stay 24hours in boiling water.

2.Good performance and more turnover use time.

3.It is easy to take off the membrane;Time is only 1/7 of the steel mould.



4.Make the surface of concrete more smooth and beautiful,so it can be easy to make decoration and it also deduct the processing of plastering.

5.This can moderate and contact 30% time for a project.



6.Corrosion resistant and ir will nor pollute the surface of concrete.



7.It is good to keep performance warm,ia favorable to make constrution in winter.



8.Products can be made into warping plewood



9.It is better to nail,saw,drill than bamboo and steel mould,can it can be processed into different types.



 Email: nnwymy at nnwymy.com     Mobile:0086-13558482831



2. Main prossesing for making dynea film faced plywood :

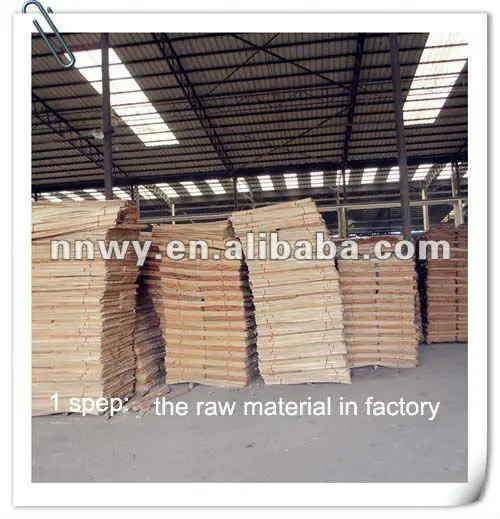

1) Raw material prepare (make sure it is dry enough, if not dry , hot press it to dry)

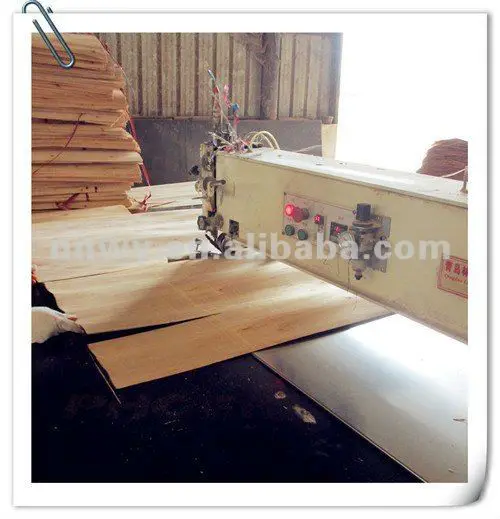

 2. Sewing the veneer for making the three or four pcs veneer together,more strong

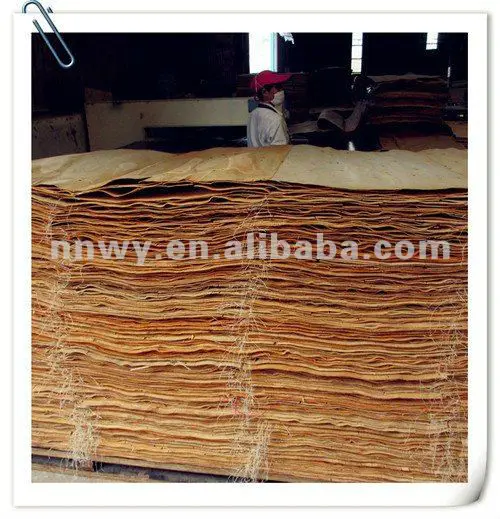

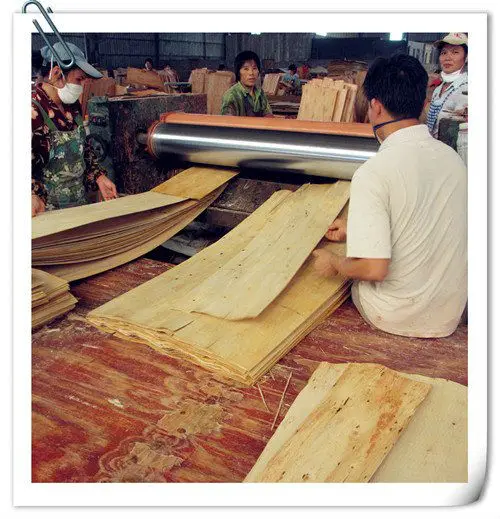

3.Glue the plate after sewing

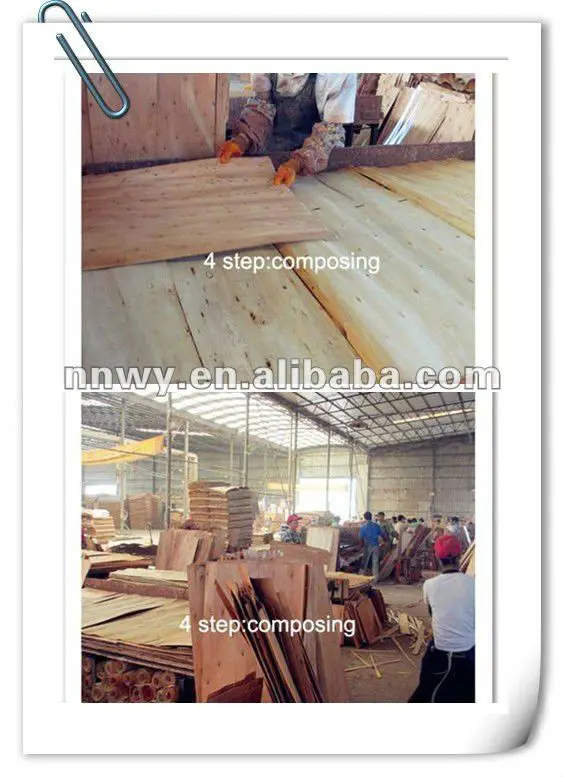

4. composing the plate

4 .jpg

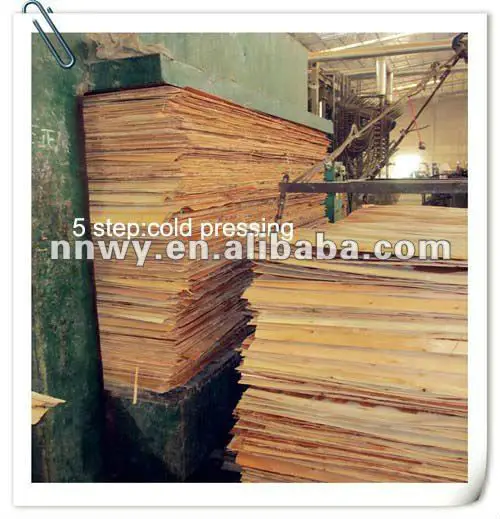

5.Cold Press by press machine

5 cold press .jpg

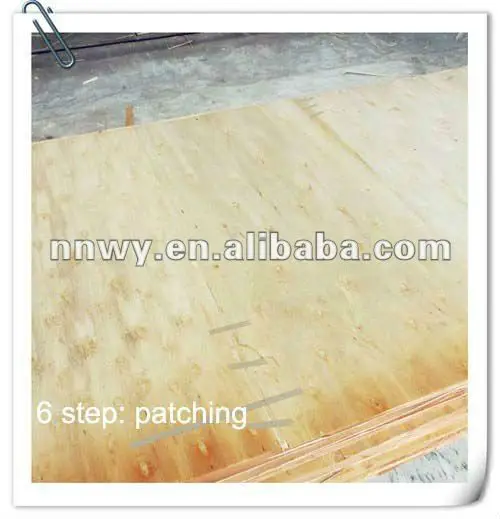

6. Patching the plate after cold press

6 .jpg

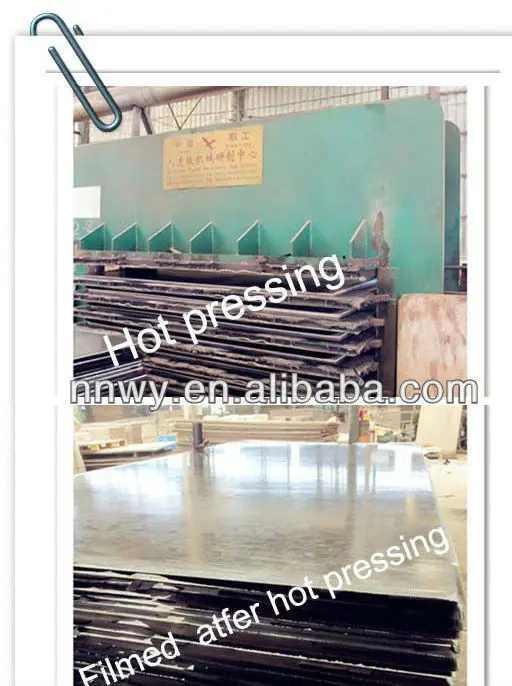

7.Hot press cutting and sanding7  .jpg

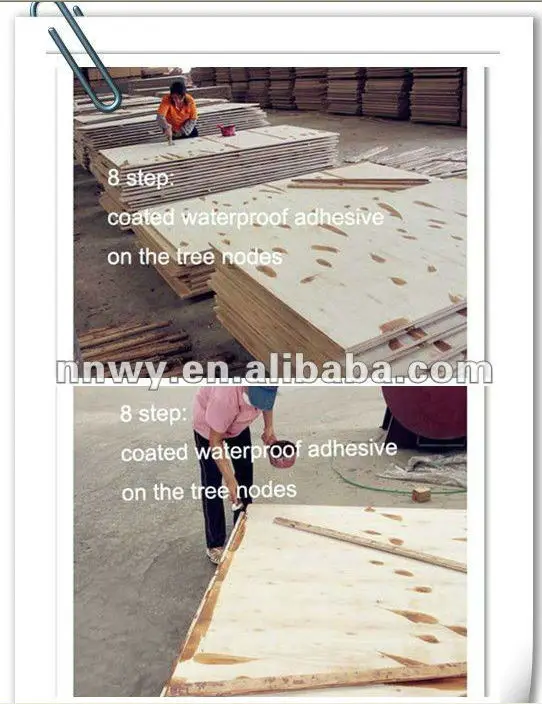

8.Coated the waterproof glue on the tree nodes



8  6_592.jpg

9.Film the plate / Finished products

  .jpg

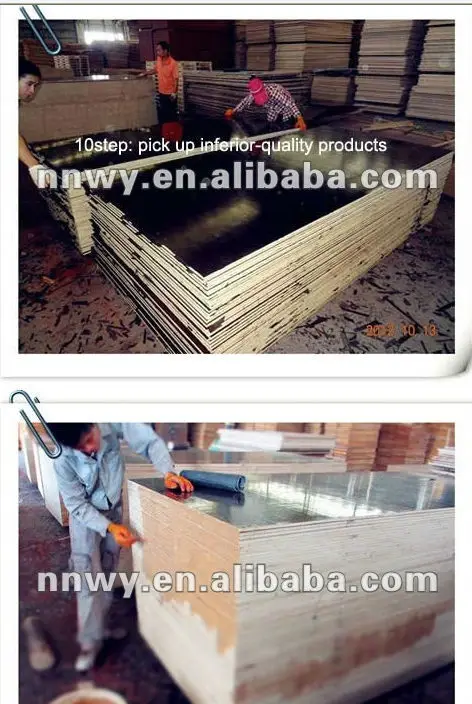

10.Pick up inferior -quality products / glue the plywood edge with waterproof  glue

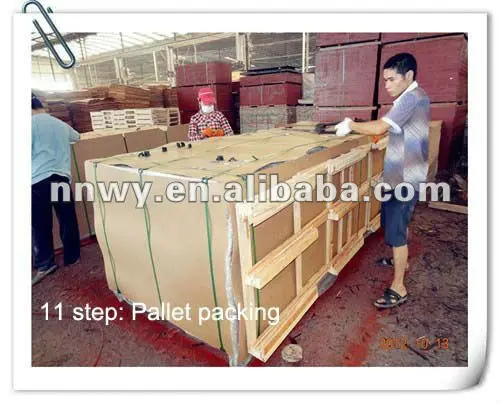

11.Packing with the mdf pallet



 .jpg

12.Test the film faced plywood quality with the boiled water




13. The plywood after testing without any separated




Should you have any enquiries, welcome to send us email  nnwymy at nnwymy.com,

Our team will get back to you with our best service!

 Welcome to visit our factory at any of your convenient time!
